Features

Type SI, 4 stroke, Oil cooled, SOHC, Fuel Injection

Engine Capacity 159.7 cm3

Maximum Power Sport: 12.91 kW (17.55 PS) @ 9250 rpm Urban / Rain: 11.50 kW (15.64 PS) @ 8650 rpm

Maximum Torque Sport: 14.73 Nm @ 7500 rpm Urban / Rain: 14.14 Nm @ 7250 rpm

Fuel supply system Fuel Injection: Bosch- Closed loop

Valve per cylinder 4 Valves

Ignition Electric start

Power to weight Ratio 0.09 kW/kg

Cooling system Oil cooled with Ram Air Assist

Muffler Bullpup exhaust design

Gear Box 5 speed gear box

Rear Suspension Mono Shock

Frame Double cradle Split Synchro Stiff Frame

Front Suspension Telescopic Forks ; Upside Down Suspension with 37mm dia (Top Variant)

Max speed Sport : 114 km/h. Urban/ Rain : 103 km/h

Frame Double cradle Split Synchro Stiff Frame

Front Suspension Telescopic Fork ; Upside Down Suspension with 37mm dia (Top Variant)

Rear Suspension Mono Shock

Battery 12V, 6Ah MF

Headlamp LED Headlamp with DRL/position lamp

Taillamp LED

Rim (front) 1.85x17

Rim (rear) Drum - 2.15x17 | Disc - 3.5x17

Tyre (front) 90/90-17 49P Tubeless

Tyre (rear) 110/80-17 57P Tubeless (Standard Drum), 130/70 R17 M/C 62P Tubeless (Radial tyre)

ABS Single Channel Super-Moto ABS ; Dual Channel ABS with RLP (Dual Channel ABS and Top variant)

Brake Fluid DOT 3 / DOT 4

Front 270mm dia Petal Disc

Rear 30 mm dia Drum (160 4V Standard-Drum) ; 200 mm dia Petal Disc (Standard-Disc & Standard Top-End) ; 240mm dia Petal Disc (Dual Channel ABS and Top Variant)

Fuel Tank Capacity Full 12 L

Ground Clearance 180 mm

Height 1050 mm (without Visor); 1111 mm (with Visor)

Length 2035 mm

Width 790 mm

Kerb Weight 143 kg (Standard-Drum, Disc, Disc + Bluetooth, Special Edition), 144 kg (Dual Channel ABS), 146 kg (Top Variant)

Saddle Height 800 mm

Wheelbase 1357 mm

Concept

Outline

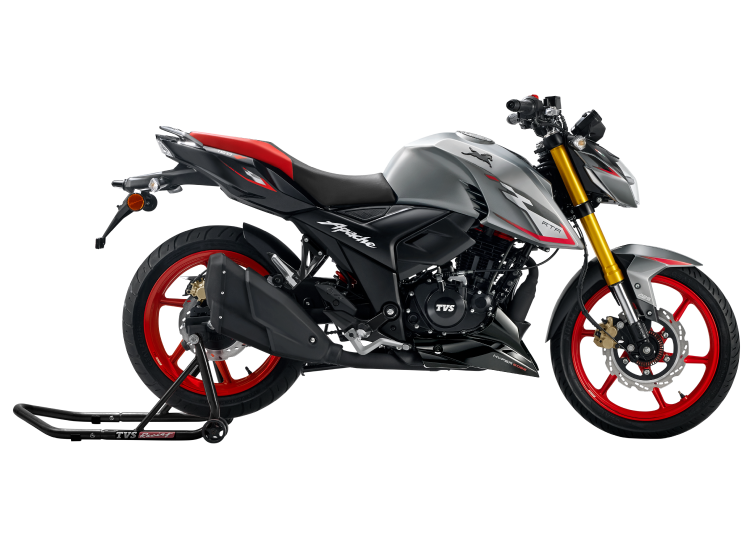

The TVS Apache RTR 160 4V has pushed the limits of performance with its best-in-class power of 17.55 PS and segment-first features like 3 ride modes, TVS SmartXonnect technology, and Glide Through Technology. Equipped with 37mm USD suspension for improved handling and comfort and Dual-Channel ABS for sharp braking, it offers unmatched performance while ensuring greater stability and agility. With an LED headlamp and taillamp, race-inspired digital cluster, and adjustable levers, it is built to surge ahead and stay there.
